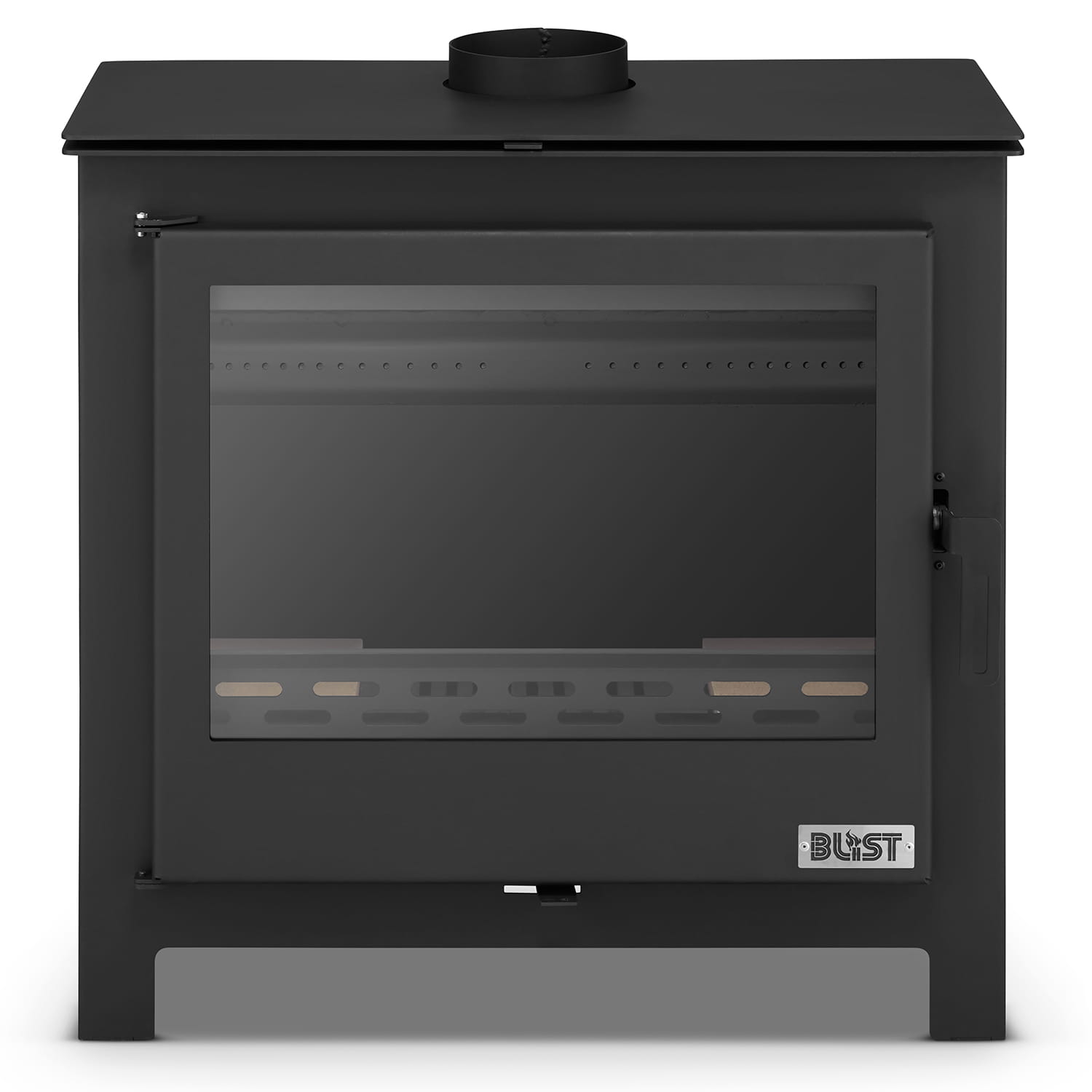

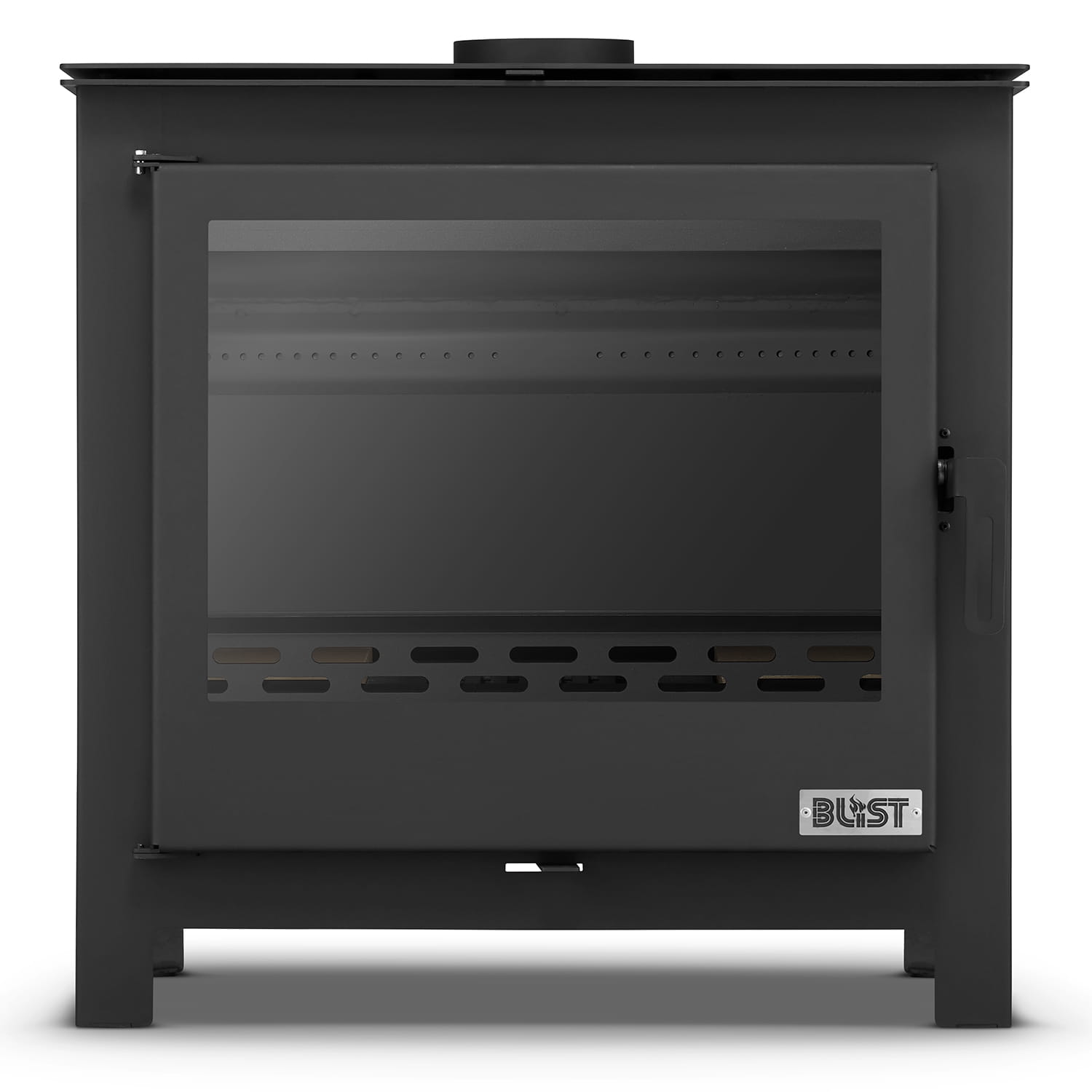

Freestanding cast-iron stove with water jacket B MAX E/ER 26 kW
Nominal output: 24 kW | Max output: 26 kW | Weight: 134 kg
Product description
The BLIST B MAX E/ER is a robust boiler (water-jacket) wood stove that can heat the whole home and support domestic hot water. With a nominal output of 24–26 kW (max 26 kW), this stove integrates easily with an existing central heating system. The boiler-steel body, SCHOTT ROBAX® ceramic glass and 76.34% efficiency make it powerful, economical and reliable. A large firebox (logs up to 40 cm) ensures long, efficient burns.
Boiler wood stove: comfort & efficiency
A 30 L water jacket transfers heat directly to radiators or underfloor heating. Combustion control (primary/secondary air), deflector and adjustable damper keep the glass cleaner and temperature stable. Complies with Ecodesign 2022, CE and BlmSchV2 for low emissions and high efficiency.
Specifications
Model: BLIST B MAX E / B MAX ER (anthracite)
Type: Wood stove with water jacket (CH connection)
Output: nominal 24–26 kW, max 26 kW
Efficiency: 76.34% | Energy label A (EEI 110)
Heating area: up to 245 m²

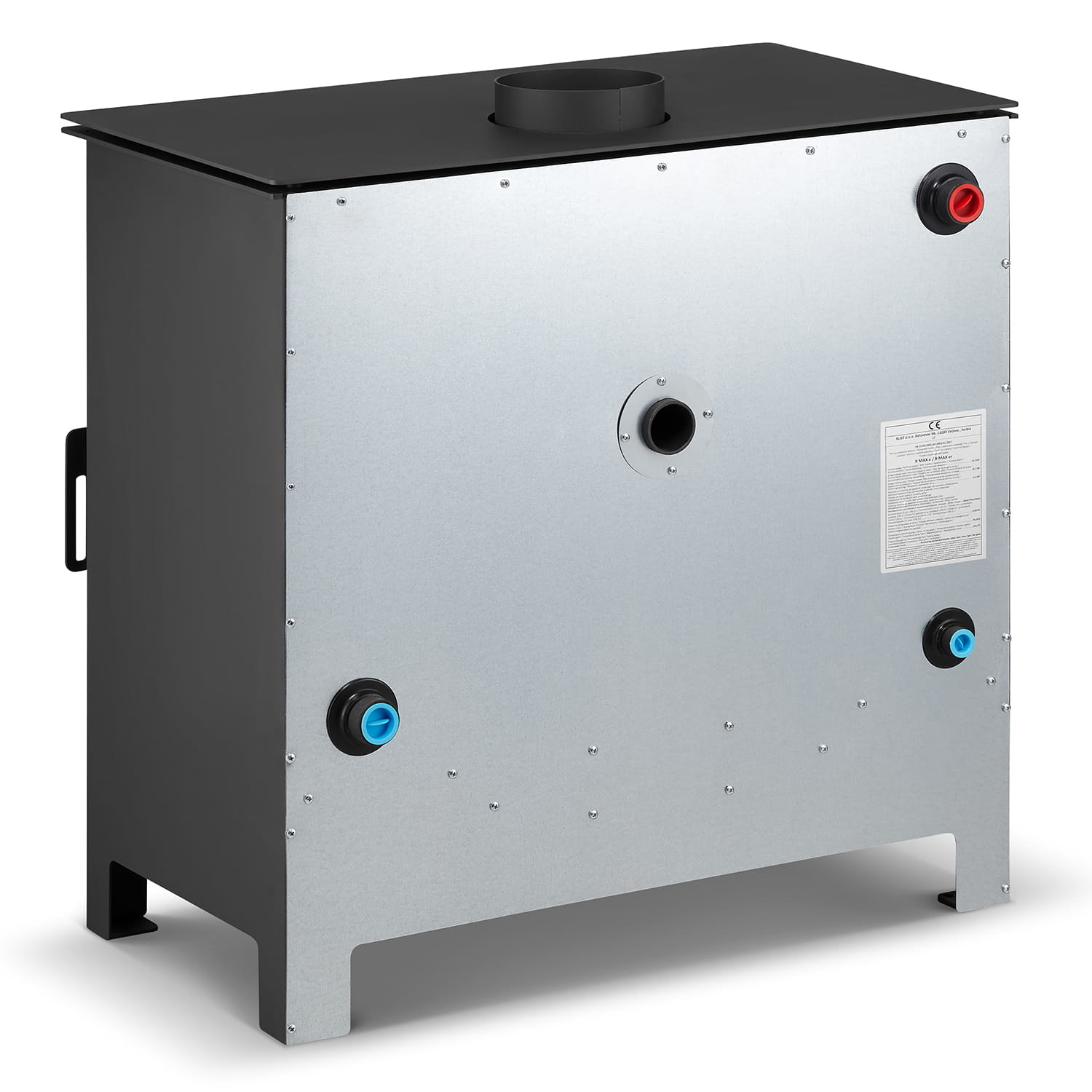

Water jacket: 30 L | CH flow/return 1" | Drain 1/2"
Max water temp: 90 °C | Max pressure: 2.0 bar
Flue outlet: top, Ø150 mm | Required draft: 14 Pa
Fuel: seasoned hardwood ≤20% moisture, briquettes; coal up to 10% admixture

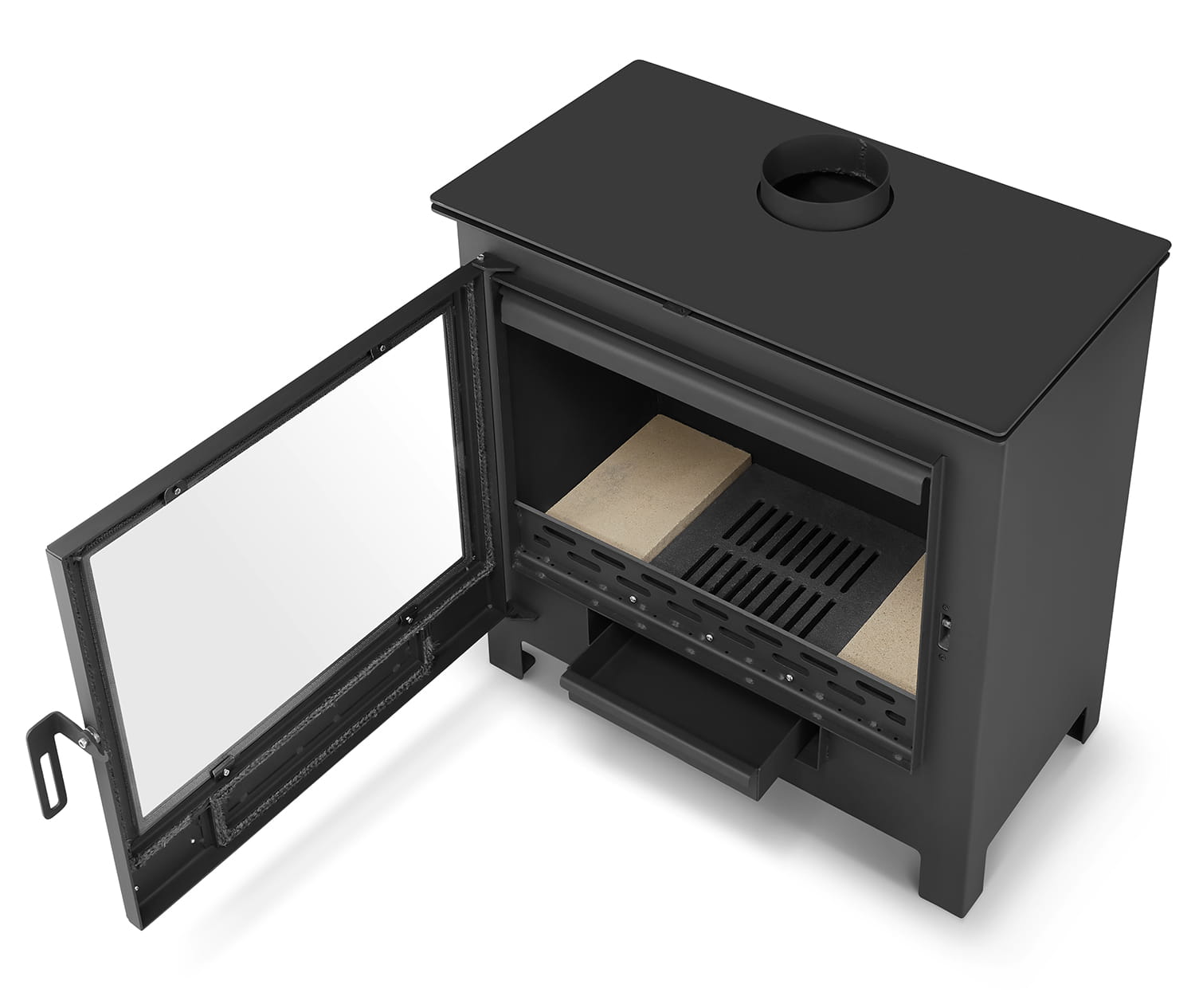

Firebox (W×D×H): 61 × 31 × 36 cm | Log length: up to 40 cm
Dimensions (W×D×H): 75 × 46.5 × 78 cm | Weight: 134 kg
Materials: boiler steel 3–5 mm, cast iron | Heat-resistant coating
Emissions (at 13% O₂): PM <40 mg/m³, OGC <120 mgC/m³, CO <1500 mg/m³, NOx <300 mg/m³
Comfort: clean-glass system, deflector, adjustable primary/secondary air, SCHOTT ROBAX® glass
Other: cast-iron grate, removable ash pan, log store, afterburn, log stoppers
Important note
Installation and commissioning by a qualified installer are recommended for safety, warranty and local regulations. Use only well-seasoned wood (≤20% moisture). Minor cosmetic imperfections may occur from production/transport; these do not affect safety or performance.
