Nominal Power » 24.5kW | Maximum Power » 26.0 kW | Weight » 140.0 kg

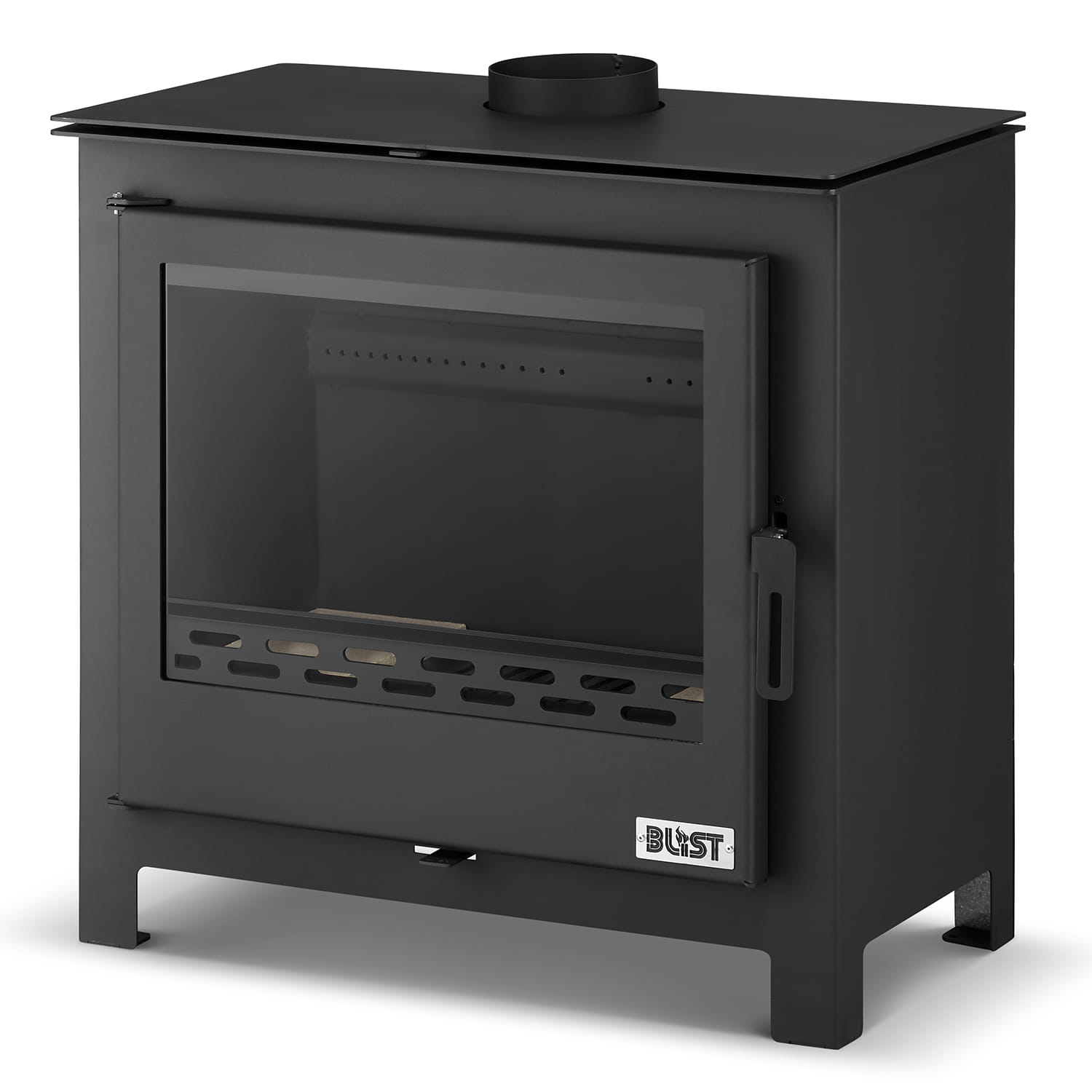

The freestanding Viking Choice B MAX E wood stove with water jacket is an extremely efficient heating device with a fashionable and modern appearance. With a maximum output of 26 kW, the stove can heat a surface up to 260 m2. The main advantage of the wood stove is the water jacket and the possibility to connect the stove to the central heating system. Wood stoves with a water jacket allow for heating water for central heating and domestic use. The water jacket is made of double walls surrounding the combustion chamber. The fire in the stove heats the water flowing through the water jacket, which in turn can drive central heating or water for domestic use. This is what makes this type of wood stove different from traditional solutions, where only the air is heated and a significant part of the heat is not utilized and escapes together with the exhaust gases through the chimney.
Viking Choice B MAX E- stoves can operate in open and closed systems, in cooperation with gas boilers. Investing in an oven with a water jacket is profitable and the costs pay off after the season of using such an oven.
Diagram of connection of an oven with a water jacket in an open system
1. Stove with water jacket / 2. Flue gas outlet / 3. Open expansion vessel / 4. Central heating pump / 5. Water supply / 6. Central heating distributor / 7. Radiators / 8. Safety pipe / 9. Expansion pipe / 10. Drain overflow pipe / 11. Sewer drain pipe / 12. Central heating boiler / 13. Central heating return / 14. Non-return valve / 15. Plate heat exchanger
Connection diagram of a water jacket oven with a gas boiler in a closed system
1. Stove with water jacket / 2. Flue gas outlet / 3. Open expansion vessel / 4. Central heating pump / 5. Water supply / 6. Central heating distributor / 7. Radiator / 8. Safety pipe / 9. Expansion pipe / 10. Overflow pipe to the sewer / 11. Sewer drain pipe
1. Flue gas outlet, we offer all flue gas outlet accessories.
2. "Clean glass" system - air supply to the combustion chamber through openings in the door. Thanks to this solution, air is drawn directly onto the window, significantly reducing glass contamination during combustion.
3. Sealed oven door - the door closure is sealed with a heat-resistant cord for extra safety. The large loading door makes loading very large logs very easy.
4. A strong steel handle with closure is a tested and good solution for quick, safe and comfortable stove use. A steel handle with an interesting shape highlights the modern form of the stove. Made from steel, it is very durable.
5. Japanese heat-resistant glass up to 800 ° C - ensures safe use of the stove even at very high temperatures. The use of high-quality heat-resistant glass and the flue gas deflector that increases the temperature of the exhaust gases significantly reduces glass contamination during combustion - the glass stays cleaner longer.
6. Deflector - the so-called "Smoke board" at the top of the stove. What does an exhaust deflector do? It primarily ensures that the heated air from the combustion chamber does not go directly to the chimney. The BLIST stove is a new generation stove and has a secondary combustion chamber, i.e., a smoke board. There, the process of burning fuel particles that have not yet been burned takes place. The additional heat generated by this process increases the efficiency and performance of the oven. The cooled and less polluted exhaust gas goes to the chimney. According to the calculations of oven manufacturers, the deflector increases efficiency by about 30%.
7. The oven is surrounded by a steel water jacket - this is the heart of the oven, the water jacket is made of thick, approved boilerplate p265gh and 16M06 with a thickness of # 6 mm and #10 mm. The water jacket completely encloses the combustion chamber to maximize the use of oven temperature and rapidly heat the water in the jacket, which is then transferred to the radiators. The stove features water grates through which the water flows. This solution significantly increases the oven's efficiency.
8. A removable ash tray under the combustion chamber allows for very quick, easy, and trouble-free operation of the stove.
9. Regulation of the combustion speed by controlling the air supply in the ashtray. This system of air supply to the combustion chamber maximizes efficiency. Air is brought under the grate, facilitating and supporting the combustion process. Closing or opening the holes results in reducing or increasing the burning speed.
10. The large combustion chamber enables loading a large amount of solid fuel for many hours. It saves you time as you don't have to add anything to the fireplace from time to time. This solution is convenient and time-saving.
11. Rating sticker
